Male Stud Bonding Fasteners (M1)

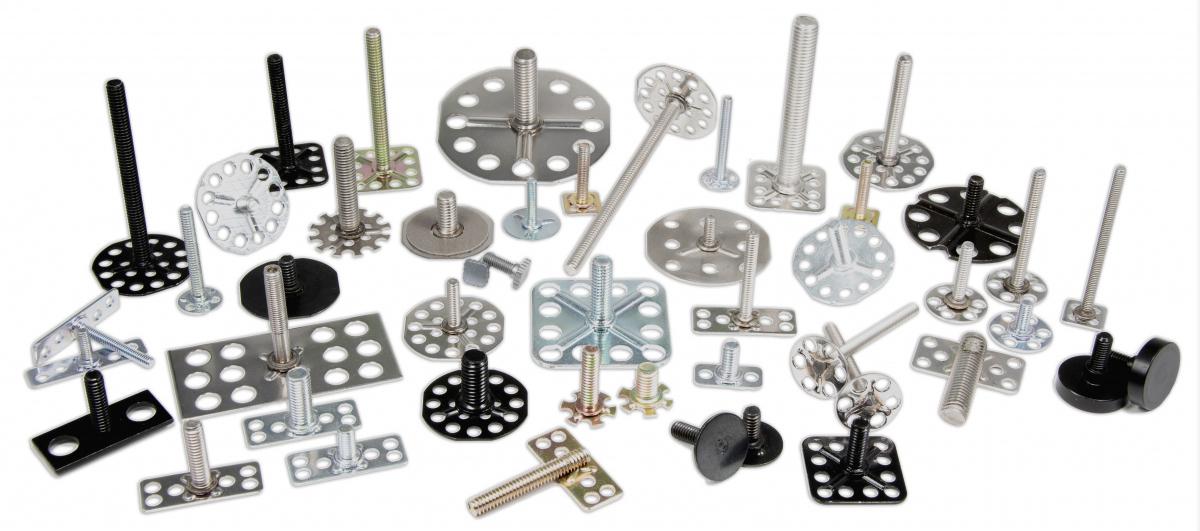

M1 Group Retouched (cropped)

The M1 Bonding Fastener is a male threaded bolt stud on a perforated baseplate.

Bonding fasteners provide a no-drill fastening option while distributing load across the baseplate. Bonding fasteners can be embedded during the molding process or adhesively mounted to virtually any substrate.

M1 Stud Plates are available in various material types, thread types, stud lengths and baseplate sizes. Coating, plating, or other finishing options can be added to meet specific salt spray or appearance requirements.

For increased tensile and sheer strength, M1 bonding fasteners can be Reverse Welded by placing the flange of the stud underneath the baseplate. The baseplate then provides an additional resistance force.

Each M1 has a custom turned stud with a cold forged head. Projections are stamped into the baseplate and attached to the stud by Resistance Projection Welding, a process utilizing force and electricity to create efficient, strong welds. When molded in, material will flow though the perforations creating greater torque resistance. When bonded on, adhesive flows through the perforations to encapsulate the baseplate.

Click here for more info on the M1 Bonding fasteners.

Click here to view M1 Bonding Fastener image gallery.

Click here to view our M1 bonding Fastener Catalog (US Customary Units/Inch).

Click here to view our M1 bonding Fastener Catalog (SI Units/Metric).

Customize your M1 Bonding Fastener

Step 1 - Select Material

  • Stainless Steel #316
  • Zinc Plated Mild Steel (RoHS Compliant Trivalent Zinc Plating)

Step 2 - Select Baseplate



Step 3 - Select Thread Size & Pitch

Standard 8-32 10-32 1/4-20 5/16-18 3-8-16 1/2-13
Metric M4x.7 M5x.8 M6x1 M8x1.25 M10x1.5 M12x1.75

Step 4 - Select Thread Length

Standard .375” .500” .625” .750” 1.00” 1.25” 1.50” 2.00” 2.50” 3.00”
Metric 10mm 12mm 16mm 20mm 25mm 30mm 40mm 50mm 65mm 75mm

Step 5 - Contact Us for Friendly Service & Pricing

We'll be happy to discuss your application and help select the product that best meets your requirements. We also can help design and produce custom bonding fasteners for your application if additional engineering considerations are required. Contact us today.

Male Stud Plate Bonding Fastener - 19mm Baseplate

Male Stud Plate Bonding Fastener - Round 19mm Baseplate (RB19)

Male Stud Plate Bonding Fastener - T 38mm x 15mm Baseplate

Male Stud Plate Bonding Fastener - Round 23mm Baseplate (RB23)

Male Stud Plate Bonding Fastener - 32mm Baseplate

Male Stud Plate Bonding Fastener - Round 32mm Baseplate (RB32)

Male Stud Plate Bonding Fastener - 38mm Baseplate

Male Stud Plate Bonding Fastener - Round 38mm Baseplate (RB38)

back

Male Stud Plate Bonding Fastener - Round 50mm Baseplate (RB50)

Male Stud Plate Bonding Fastener - 76mm Baseplate

Male Stud Plate Bonding Fastener - Round 76mm Baseplate (RB76)

Male Stud Plate Bonding Fastener - T 50mm x 15mm Baseplate

Male Stud Plate Bonding Fastener - 50mm x 15mm Baseplate (T50x15)

Male Stud Plate Bonding Fastener - T 38mm x 15mm Baseplate

Male Stud Plate Bonding Fastener - 38mm x 15mm Baseplate (T38x15)

Male Stud Plate Bonding Fastener - T 38mm x 15mm Baseplate

Male Stud Plate Bonding Fastener - Turned 30mm x 6mm thick Baseplate w/ Shoulder (RB30x6mm w/ Shoulder)

Male Stud Plate Bonding Fastener - T 38mm x 15mm Baseplate

Male Stud Plate Bonding Fastener - HP44 Baseplate (HP44)

Male Stud Plate Bonding Fastener - T 38mm x 15mm Baseplate

Male Stud Plate Bonding Fastener - 24mm x 11.5mm Baseplate (T24)

Male Stud Plate Bonding Fastener - T 38mm x 15mm Baseplate

Forged Male Stud Plate For Injection Molding - Square 10.2mm Baseplate (SB10.2 forged)

Male Stud Plate Bonding Fastener - T 38mm x 15mm Baseplate

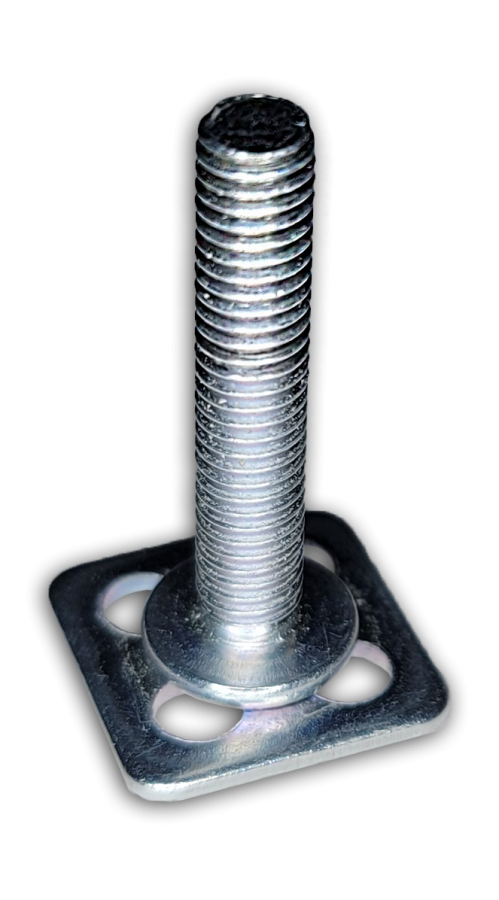

Male Stud Plate Bonding Fastener - Square 15mm Baseplate (SB15)

Male Stud Plate Bonding Fastener - T 38mm x 15mm Baseplate

Male Stud Plate Bonding Fastener - Square 15mm Baseplate (SB15)

Male Stud Plate Bonding Fastener - T 38mm x 15mm Baseplate

Male Stud Plate Bonding Fastener w/ Black E-Coat - Square 30mm Baseplate w/ E-Coat (SB30 w/ E-Coat)

Male Stud Plate Bonding Fastener - T 38mm x 15mm Baseplate

Male Stud Plate Bonding Fastener - 38mm x 19mm Baseplate (T38x19)

Male Stud Plate Bonding Fastener - T 38mm x 15mm Baseplate

Male Stud Plate Bonding Fastener - 38mm x 11.5mm Baseplate (T38x11.5)

Male Stud Plate Bonding Fastener - T 38mm x 15mm Baseplate

Male Stud Plate Bonding Fastener - 40mm x 10mm Baseplate (T40x10)

Male Stud Plate Bonding Fastener - T 38mm x 15mm Baseplate

Male Stud Plate Bonding Fastener - 41mm  x 19mm Baseplate (T41x19)

Male Stud Plate Bonding Fastener - T 38mm x 15mm Baseplate

Male Stud Plate Bonding Fastener - 76mmx38mm Baseplate (T76x38)

Male Stud Plate Bonding Fastener - T 38mm x 15mm Baseplate

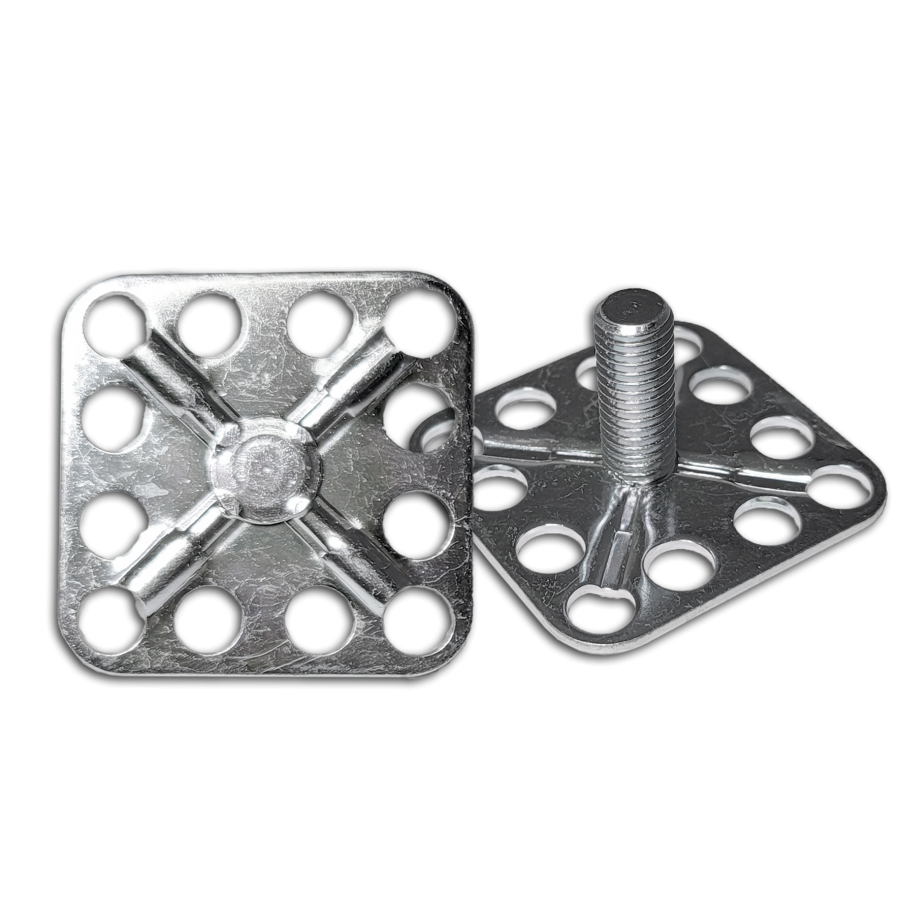

Male Stud Plate Bonding Fastener - Square 50mm Reverse Welded Baseplate (SB50 - RW)

Male Stud Plate Bonding Fastener - T 38mm x 15mm Baseplate

Male Stud Plate Bonding Fastener - Round 38mm Baseplate (RB38)

Male Stud Plate Bonding Fastener - T 38mm x 15mm Baseplate

Titanium Male Stud Plate Bonding Fastener - 38mm x 15mm Baseplate (Titanium - T38)

Male Stud Plate Bonding Fastener - T 38mm x 15mm Baseplate

Titanium Male Stud Plate Bonding Fastener - Round 38mm Baseplate (Titanium - RB38)

Male Stud Plate Bonding Fastener - T 38mm x 15mm Baseplate

Male Stud Plate Bonding Fastener - Round Solid 23mm Baseplate w/ Black E-Coat (B23-E-Coat)

Male Stud Plate Bonding Fastener - T 38mm x 15mm Baseplate

Male Stud Plate Bonding Fastener - Round 32mm Baseplate (RB32#4)

Male Stud Plate Bonding Fastener - T 38mm x 15mm Baseplate

Male Stud Plate Bonding Fastener w/ Black E-Coat - Round Solid 38mm Baseplate (RB38#3 - E-Coat)

Male Stud Plate Bonding Fastener - T 38mm x 15mm Baseplate

Male Stud Plate Bonding Fastener w/ Black E-Coat - Round 38mm Baseplate (RB38-Special - E-Coat)

Male Stud Plate Bonding Fastener - T 38mm x 15mm Baseplate

Male Stud Plate Bonding Fastener - Round 38mm Baseplate (RB38#4)

Male Stud Plate Bonding Fastener - T 38mm x 15mm Baseplate

Male Stud Plate Bonding Fastener - Round 38mm Baseplate (RB38 Barbed)

Male Stud Plate Bonding Fastener - T 38mm x 15mm Baseplate

Male Stud Plate Bonding Fastener w/ Reverse-side Female Threaded Nut - 23mm Baseplate (M1F1-RB23)

Male Stud Plate Bonding Fastener - T 38mm x 15mm Baseplate

Male Stud Plate Bonding Fastener w/ Reverse-side Female Collar - Square 50mm Baseplate (M1F2-SB50)

Male Stud Plate Bonding Fastener - T 38mm x 15mm Baseplate

Male Stud Plate Bonding Fastener - Square 30mm Baseplate (SB30)

Male Stud Plate Bonding Fastener - T 38mm x 15mm Baseplate

Male Stud Plate Bonding Fastener - Square 30mm Baseplate w/ 20mm Round Base (M1-SB30+20)

Male Stud Plate Bonding Fastener - T 38mm x 15mm Baseplate

Male Stud Plate Bonding Fastener - Square 32mm Baseplate (SB32)

Male Stud Plate Bonding Fastener - T 38mm x 15mm Baseplate

Male Stud Plate Bonding Fastener - Square 15.2mm Baseplate (SB15.2)

Male Stud Plate Bonding Fastener - T 38mm x 15mm Baseplate

Male Weld Stud - Round 23mm Baseplate (RB23#4)

Male Stud Plate Bonding Fastener - T 38mm x 15mm Baseplate

Male Stud Plate Bonding Fastener, Sideways- 38mm x 15mm Baseplate (T38x15)

Male Stud Plate Bonding Fastener - T 38mm x 15mm Baseplate

Male Stud Plate Bonding Fastener w/ Top-Face VHB - Round 38mm Baseplate (RB38-Top Face VHB)

Male Stud Plate Bonding Fastener - T 38mm x 15mm Baseplate

Male Stud Plate Bonding Fastener w/ E-Coat and Reverse-side VHB - (RB38-RW - E-Coat - VHB)

Male Stud Plate Bonding Fastener - T 38mm x 15mm Baseplate

Male Stud Plate Bonding Fastener w/ VHB- Round 38mm Baseplate w/ VHB (RB38-VHB)
