Female Nut Bonding Fasteners

Female Nut Bonding Fasteners

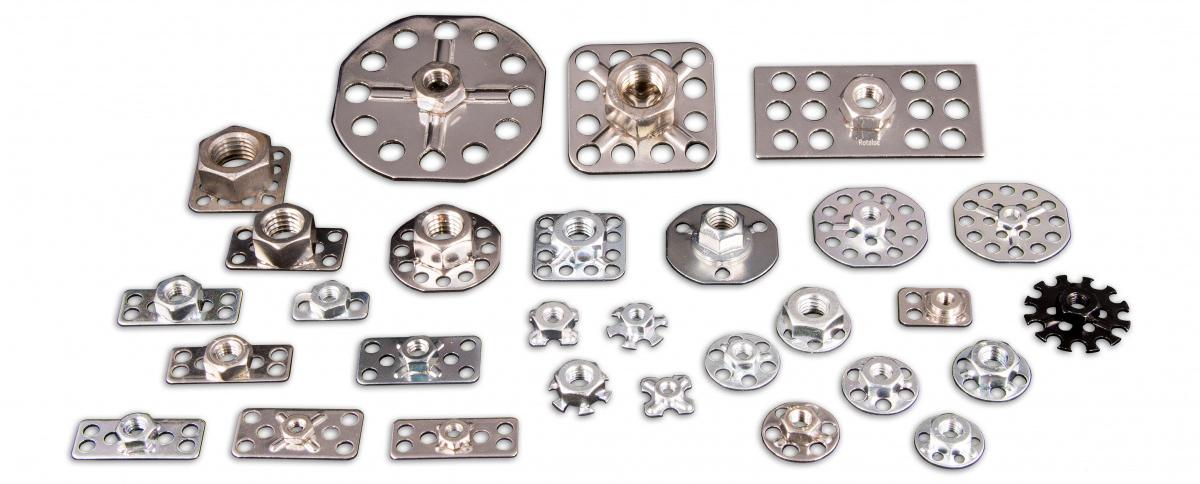

Female hex nut mounted on a perforated baseplate.

Bonding fasteners provide a no-drill fastening option with load distributed across the baseplate. Bonding fasteners can be embedded during the molding process or adhesive mounted to virtually any substrate.

F1 female nut plates are available in various material types, thread types and baseplate sizes. Coating, plating, or other finishing options can be added to meet specific salt spray or appearance requirements.

Each F1 has a hex nut welded to baseplate. Projections are stamped into the baseplate and the hex nut is attached by Resistance Projection Welding, a process utilizing force and electricity to create efficient, strong welds. When molded in, material will flow though the perforations creating greater torque resistance. When bonded on, adhesive flows through the perforations to encapsulate the baseplate.

Step 1 - Select Material

  • Stainless Steel #316
  • Zinc Plated Mild Steel (RoHS Compliant Trivalent Zinc Plating)

Step 2 - Select Baseplate

Common Baseplates



All Available Baseplates

Step 3 - Select Thread Size & Pitch

Standard 8-32 10-32 1/4-20 5/16-18 3-8-16 1/2-13
Metric M4x.7 M5x.8 M6x1 M8x1.25 M10x1.5 M12x1.75

Step 4 - Contact Us for Friendly Service & Pricing

We'll be happy to discuss your application and help select the product that best meets your requirements. We also can help design and produce custom bonding fasteners for your application if additional engineering considerations are required. Contact us today.

back

Female Nut Bonding Fastener - 32mm #4 Baseplate

back

Female Nut Bonding Fastener - 50mm Baseplate

Female Nut Bonding Fastener - T 24mm x 11.5mm Baseplate

Female Nut Bonding Fastener - T 24mm x 11.5mm Baseplate

Female Nut Bonding Fastener - T 38mm x 19mm Baseplate

Female Nut Bonding Fastener - T 38mm x 19mm Baseplate

Female Nut Bonding Fastener T 38 x 11.5mm Baseplate

Female Nut Bonding Fastener T 38 x 11.5mm Baseplate

Female Nut Bonding Fastener - T 50mm x 15mm Baseplate

Female Nut Bonding Fastener - T 50mm x 15mm Baseplate

Female Nut Bonding Fastener - T 76mm x 38mm Baseplate

Female Nut Bonding Fastener - T 76mm x 38mm Baseplate

Custom Female Nut Bonding Fastener

 Custom Female Nut Bonding Fastener

Custom Female Nut Bonding Fastener

Custom Female Nut Bonding Fastener

Female Nut Bonding Fastener - 32mm Baseplate

Female Nut Bonding Fastener - 32mm Baseplate

Female Nut Bonding Fastener - 30mm Baseplate

Female Nut Bonding Fastener - 30mm Baseplate

Female Nut Bonding Fastener - 16mm Baseplate

Female Nut Bonding Fastener - 16mm Baseplate

Female Nut Bonding Fastener - 38mm Baseplate-Barbed

Female Nut Bonding Fastener - 38mm Baseplate-Barbed

Custom Female Nut Bonding Fastener

Custom Female Nut Bonding Fastener

Female Nut Bonding Fastener - 19mm Baseplate

Female Nut Bonding Fastener - 19mm Baseplate

Female Nut Bonding Fastener - 23mm Baseplate

Female Nut Bonding Fastener - 23mm Baseplate

Female Nut Bonding Fastener - 32mm Baseplate

Female Nut Bonding Fastener - 32mm Baseplate

Female Nut Bonding Fastener - 38mm Baseplate

Female Nut Bonding Fastener - 38mm Baseplate

Brass Female Nut Bonding Fastener - 15mm Baseplate

Female Nut Bonding Fastener - 15mm Baseplate

Female Nut Bonding Fastener - 23mm Baseplate

Female Nut Bonding Fastener - 23mm Baseplate
